Haɗe-haɗen Rumbun Rubutun Gidaje Masu Fita
Lavatory house wato a kan daidaitaccen gida mai cike da kwantena yana haɓaka firam ɗin cikin gida, kwandon wanki, samar da ruwa da bututun magudanar ruwa da sauran wurare, don biyan bukatun mutane don wankewa.
Gidan kabad na ruwa ya haɗa da akwatin mita 3, dandamalin gidan wanka, saiti 2 na bakin karfe 2 (kwayoyin 5 tare da kan sanyaya guda ɗaya na yau da kullun), saiti 1 na ruwa (tare da famfo na yau da kullun), famfon mai wanki 1, magudanar bakin karfe , Saitin magudanar ruwa na bene 1, kofa tare da mashin iska.Faucet ɗinsa da sauran kayan aikin ƙarfe ne na jan ƙarfe, ana amfani da samfuran shahararrun samfuran China, ingancin yana da aminci sosai.
Ana iya tsara gidan bisa ga buƙatun abokin ciniki, kamar: Gidan kabad na ruwa yana ƙara aikin shawa.
Ana ƙara ɓangarori don raba ɗakin shawa daga ɗakin ɗakin wanki.
Ɗayan gefe don shawa, wani gefen don ɗakin ruwa
Wanke Basin Da Salo Daban Daban
Ado
Rufi
V-170 rufi (ƙusa mai ɓoye)
V-290 rufi (ba tare da ƙusa ba)
Surface na bango panel
Wall ripple panel
Orange kwasfa panel
Insulation Layer na bango panel
Dutsen ulu
Gilashin auduga
Basin
Basin na al'ada
Ruwan marmara
Fitila
Fitilar zagaye
Dogon fitila
Tufafin wanka
SS tufafin kwandon shara
Tufafin marmara na wanka
GS Housing Group yana da kamfani mai ƙira - Beijing Boyuhongcheng Architectural Design Co., Ltd.
Cibiyar ƙira ta iya samar da shirye-shiryen jagoranci na fasaha na musamman da kuma kula da shimfidar ma'ana don abokan ciniki daban-daban.kuma yana fassara ma'anar gine-ginen da aka riga aka tsara daga hangen abokan ciniki.

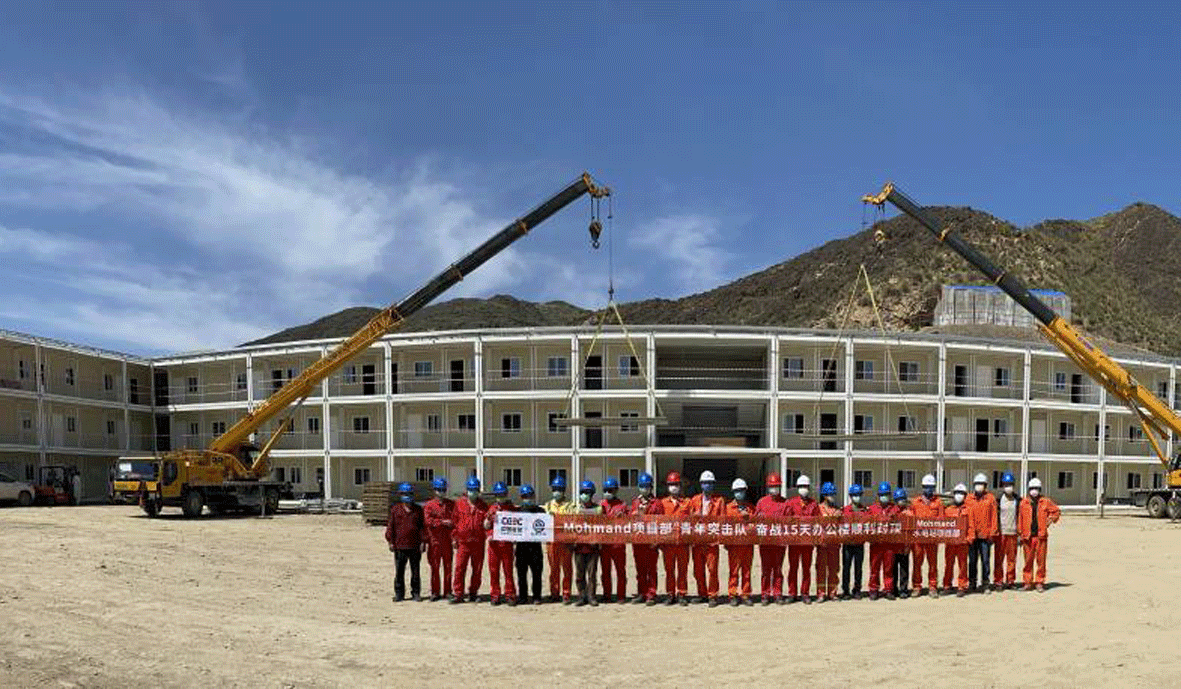

A halin yanzu, mun gudanar da manyan ayyuka da yawa: Pakistan Mohmand Hydropower Project, Trinidad Airport Project, Sri Lanka Colombo Project, La Paz Water Supply Project a Bolivia, Sin Universal aikin, Daxing International filin jirgin sama aikin, "HUOSHENGSHAN" & "LEISHENSHAN" ayyukan asibitoci, da ayyukan gine-gine na Metro iri daban-daban a kasar Sin... wanda ya shafi sansanonin injiniya, kasuwanci, farar hula, ilimi, masana'antar sansanonin soja da sauransu.
1000-1500 nau'ikan gidan kwantena na iya biyan buƙatun nau'ikan ofis daban-daban, masauki, wanka, dafa abinci, taro da sauransu.
Cibiyar Zane ta GS gidaje ita ce tushen fasahar kamfanin.Yana da alhakin ci gaba da sababbin samfurori na kamfanin, da kuma haɓaka samfurin da ake ciki , ƙirar ƙira, ƙirar ƙirar gini, kasafin kuɗi da sauran ayyukan fasaha masu alaƙa.A jere sun ƙaddamar da sabon nau'in gidan-G mai lebur, gidaje da aka girka cikin sauri da sauran kayayyaki, sun sami haƙƙin ƙirƙira 48 na ƙasa.
| Gidan Rufe Ruwa | ||
| Ƙayyadaddun bayanai | L*W*H (mm) | Girman waje 6055*2990/2435*2896 Girman ciki 5845*2780/2225*2590 girman girman da za'a iya ba da |
| Nau'in rufin | Rufin lebur tare da bututun magudanar ruwa guda huɗu ( Girman giciye-bututu: 40 * 80mm) | |
| Storey | ≤3 | |
| Kwanan ƙira | Rayuwar sabis da aka tsara | shekaru 20 |
| Load ɗin bene | 2.0KN/㎡ | |
| Roof live load | 0.5KN/㎡ | |
| Yawan yanayi | 0.6KN/㎡ | |
| Sersmic | 8 digiri | |
| Tsarin | Rukunin | Musammantawa: 210 * 150mm, Galvanized sanyi yi karfe, t = 3.0mm Material: SGC440 |
| Rufin babban katako | Musammantawa: 180mm, Galvanized sanyi yi karfe, t = 3.0mm Material: SGC440 | |
| Babban katako na bene | Musammantawa: 160mm, Galvanized sanyi yi karfe, t = 3.5mm Material: SGC440 | |
| Rufin sub katako | Musammantawa: C100*40*12*2.0*7PCS,Galvanized sanyi yi C karfe,t=2.0mm Material:Q345B | |
| Ƙarƙashin ƙasa | Musammantawa: 120 * 50 * 2.0 * 9pcs, "TT" siffa guga man karfe, t = 2.0mm Material: Q345B | |
| Fenti | Foda electrostatic spraying lacquer≥80μm | |
| Rufi | Rufin rufin | 0.5mm Zn-Al mai rufi m karfe takardar, fari-launin toka |
| Abun rufewa | 100mm gilashin ulu tare da guda Al foil.yawa ≥14kg/m³, Class A mara ƙonewa | |
| Rufi | V-193 0.5mm guguwar Zn-Al mai launi mai launi na karfe, ƙusa mai ɓoye, farin-launin toka | |
| Falo | Falo na bene | 2.0mm PVC allon, duhu launin toka |
| Tushen | 19mm ciminti fiber allo, yawa≥1.3g/cm³ | |
| Layer mai hana danshi | Fim ɗin filastik mai hana danshi | |
| Farantin rufewa na ƙasa | 0.3mm Zn-Al rufin allo | |
| bango | Kauri | 75mm m karfe sanwici farantin karfe;Farantin waje: 0.5mm orange kwasfa aluminum plated tutiya m karfe farantin, hauren giwa fari, PE shafi;Farantin ciki: 0.5mm aluminum-zinc plated farantin karfe mai launi, farin launin toka, PE shafi;Ɗauki nau'in maɓalli na "S" don kawar da tasirin gada mai sanyi da zafi |
| Abun rufewa | dutse ulu, yawa≥100kg/m³, Class A Non-combustible | |
| Kofa | Ƙayyadewa (mm) | W*H=840*2035mm |
| Kayan abu | Karfe rufe | |
| Taga | Ƙayyadewa (mm) | Tagar gaba: W*H=1150*1100,Tagar baya: W*H==800*500 |
| Kayan firam | Ƙarfe na Pastic, 80S, Tare da sandar hana sata, Tagar allo marar ganuwa | |
| Gilashin | 4mm + 9A + 4mm gilashin biyu | |
| Lantarki | Wutar lantarki | 220V ~ 250V / 100V ~ 130V |
| Waya | Main waya: 6㎡, AC waya:4.0㎡, soket waya:2.5㎡, haske canza waya:1.5㎡ | |
| Mai karyawa | Karamin mai jujjuyawa | |
| Haske | Fitillun da'ira mai hana ruwa biyu, 18W | |
| Socket | 1pcs 5 soket soket 10A,1pcs 3 ramukan AC soket 16A,1pcs guda haɗin jirgin sama canza 10A (EU / US ..misali) | |
| Tsarin Ruwa & Ruwa | Tsarin samar da ruwa | DN32, PP-R, bututu samar da ruwa da kayan aiki |
| Tsarin magudanar ruwa | De110/De50, UPVC Ruwa magudanar bututu da kayan aiki | |
| Tsarin Karfe | Kayan firam | Galvanized square bututu 口40*40*2 |
| Tushen | 19mm ciminti fiber allo, yawa≥1.3g/cm³ | |
| Falo | 2.0mm kauri maras zamewa bene PVC, duhu launin toka | |
| Sanitary ware | Kayan aikin tsafta | 2pcs quintuple nutse, 10pcs gooseneck faucets, 1pcs wanki injin famfo, 1pcs mop nutse da famfo |
| Kayan aiki | bakin karfe gutter, bakin karfe gutter grate, 1pcs standy bene magudana | |
| Wasu | Sama da ginshiƙi ƙawata sashi | 0.6mm Zn-Al mai rufi launi karfe takardar, fari-launin toka |
| Skirting | 0.8mm Zn-Al mai rufi launi karfe skirting, fari-launin toka | |
| Kofa ta rufe | 1pcs Door Kusa, Aluminum (na zaɓi) | |
| Ɗauki daidaitaccen gini, kayan aiki da kayan aiki sun dace da daidaitattun ƙasa.haka kuma, ana iya samar da girman da aka keɓance da wuraren da ke da alaƙa gwargwadon bukatun ku. | ||
Bidiyon Shigar da Raka'a
Bidiyon Shigar da Matakai&Coridor House
Bidiyon Shigar da Gidan Haɗin Kai & Wutar Wuta na Waje
